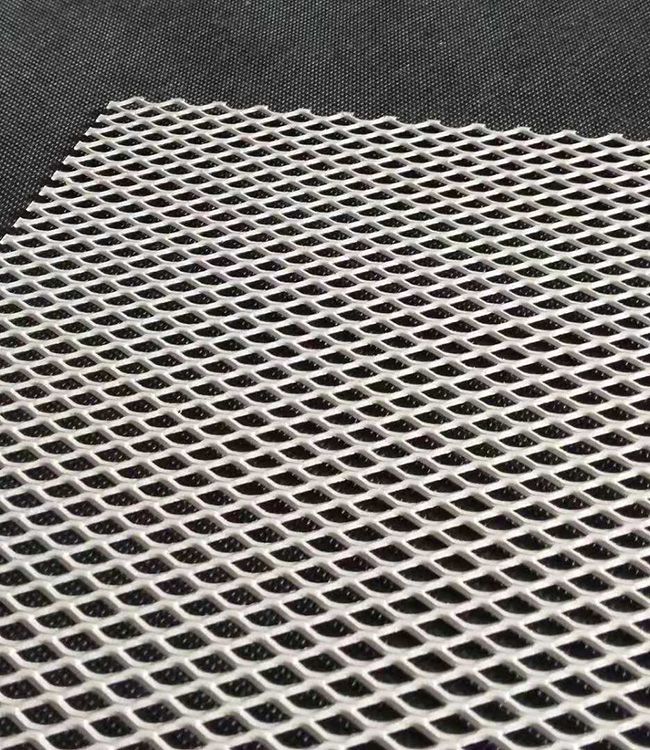

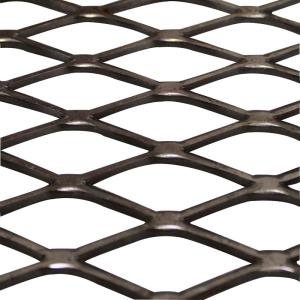

Flatten Type Aluminum Mesh Expanded Metal Sheet For Catwalk Grating
Production introduction
Expanded metal is an open mesh, and it has the flatten type. It is a finished product that is simultaneously die-cut and expanded as it moves through progressive dies on a press.
In the expanding process, the metal can be expanded up to ten times its original size, lose up to 80% of its original weight per square foot, and still retain form and rigidity.
Ares Metal can produce variety of expanded metal sheets. Our Expanded products are available both in standard and flattened.
Material:
- Carbon Steel
- Stainless steel plate
- Galvanized plate
- Titanium plate
- Copper
Surface Treatment:
- Painting
- Galvanized
- Powder Coating
Specification
| STYLE | WT/SF LBS | DESIGN | OPENINGS | STRAND | OVERALL | OPEN |
| SWD | LWD | SWO | LWO | THICKNESS | WIDTH | THICKNESS | AREA |
| 1/4" #9 | 0.81 | 0.312 | 1.000 | 0.161 | 0.644 | 0.041 | 0.079 | 0.041 | 50% |
Nomenclature
Diamend - The open area formed by strands and bonds. Normaaly the open area is diamond shaped.
Strand - The single metal strip that forms the perimeter of the diamond. The strand thickness is the thickness of the metal form which the expanded metal is produced. The strand width is the amount of material advance before forming the next diamond.
Bond - The point where adjacents strands interest. The bond width is always twice the width of the strand.
LWD - Long way of the diamond
SWD - Short way of the diamond
LWO - Long way of the opening
SWO - Short way of the opening
Customization Requirements
If you are looking for a flat porous metal mesh of a specific size or type not listed in our inventory, please let us know.
We have our own in-house manufacturing department and we can customize any stock metal to meet the most challenging or unique applications.
Our custom machining capabilities include cutting, shearing, cutting, welding, punching, drilling, slitting and burning.
Our well-equipped manufacturing facilities and unparalleled expertise provide the right solution for your company.
We customize a wide range of products, from flat expanded filler panels to safety machine guards to our customers' exact specifications.
Our Advantage
- We have a wide range of products and supply Thai standard American standard South Africa Xinjiapo and other standard products.
- Customized according to customer's requirement for mesh size, opening size, specification, patterns
- Adequate inventory, low order quantity
- Deep processing service
Raised Expanded Metal Applications
The applications and uses for raised expanded metal products are virtually endless. Example include:
- Ramps
- Curtain Wall Panels
- Building Facades Metal Mesh
- Display Panel
